Description

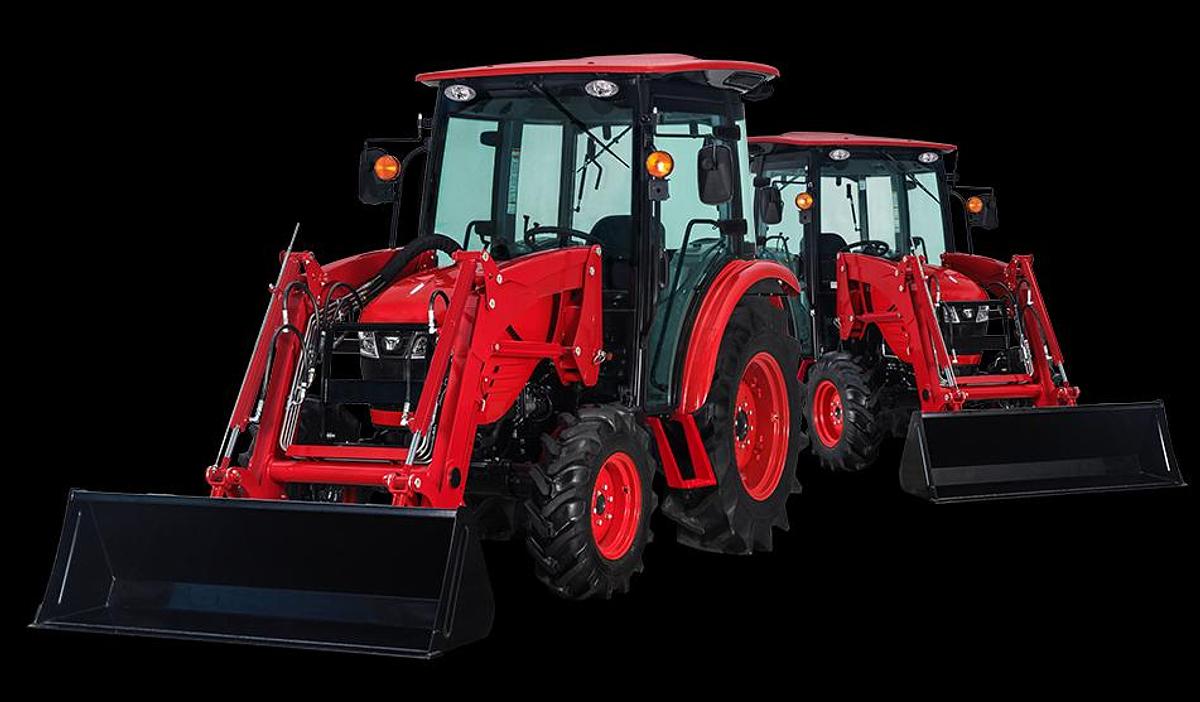

The TYM 5520C pairs the same 55 horsepower turbocharged Series 4 platform with a fully enclosed cab, giving operators a comfortable, weatherproof workstation without giving up the power and traction that makes the 5520 platform capable on tough ground. The 4 cylinder TYM diesel delivers 44 PTO horsepower, and buyers can choose a 16 forward by 16 reverse synchromesh transmission or a 4 range hydrostatic transmission. Like the base 5520, the cab model includes a differential lock system, a tight turning radius, a tilt steering wheel, a water separating fuel filter, and a PTO on and off switch. The cab adds standard climate control and a quieter operating environment for long days in the field.
Specifications
| Manufacturer | TYM |
| Model | 5520C |
| Year | 2026 |
| Condition | New |
| Stock Number | TRK-1062 |
| Engine Manufacturer | TYM T2300T3 |
| Engine Type | Turbocharged, 4 cylinder |
| Gross Engine Power | 55 hp (41 kW) |
| PTO Power | 44 hp (32.8 kW) |
| No. of Cylinders | 4 |
| Displacement | 139.5 cu in (2,286 cc) |
| Transmission Type | Synchromesh, 16F x 16R (optional HST, 4 range) |
| Max Travel Speed | 16 mph synchromesh / 19.5 mph HST |
| PTO Type | Independent |
| Hydraulic Pump Type | Dual gear pump |
| Hitch Lift Capacity | 3,306 lb (1,500 kg) |
| Fuel Tank Capacity | 11.8 gal (45 L) |
| Overall Length | 127.4 in (3,236 mm) |
| Overall Width | 64.9 in (1,650 mm) |
| Wheelbase | 71.1 in (1,806 mm) |
| Operating Weight | 4,349 lb (1,973 kg) with cab |
| Front Tires (Standard) | R1 Ag 9.5-16 / R3 Turf 27x8.5-15 or 29x12.5-15 / R4 Industrial 12-16.5 |
| Rear Tires (Standard) | R1 Ag 13.6-26 / R3 Turf 41x14-20 or 44x18-20 / R4 Industrial 17.5Lx24 |
