Description

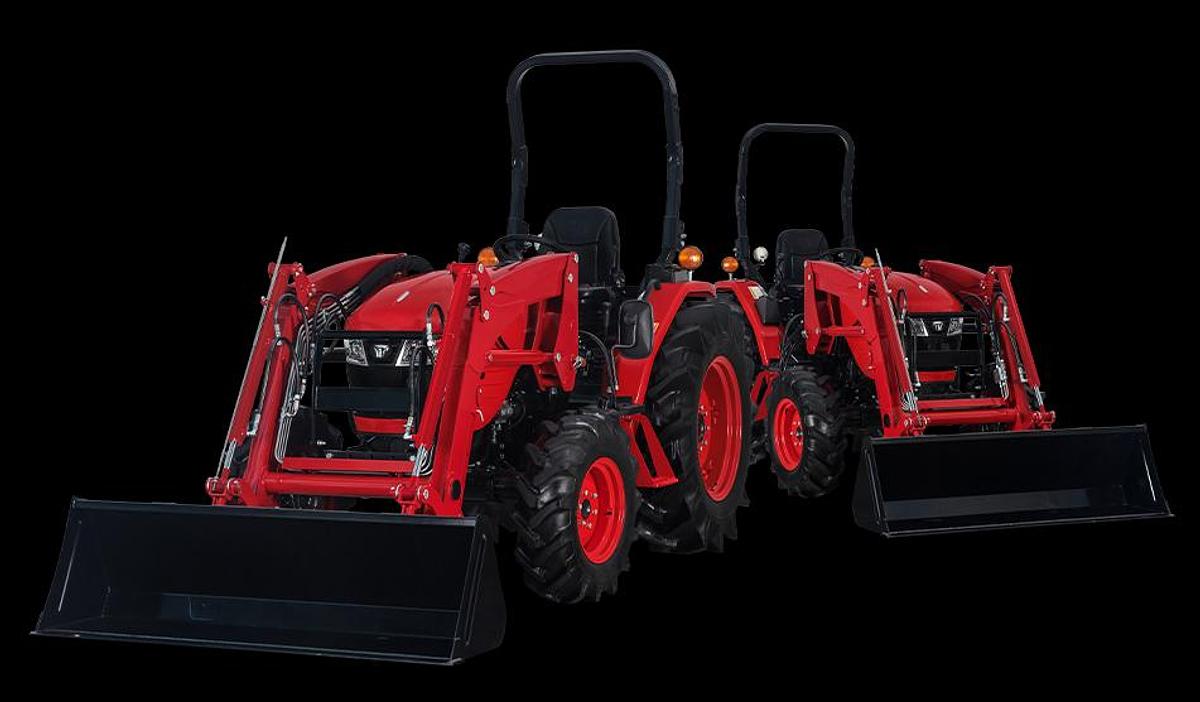

The TYM 5520 is a Series 4 compact tractor built for buyers who need real horsepower without stepping up to a full size utility tractor. A turbocharged, 4 cylinder TYM diesel produces 55 gross horsepower and 44 PTO horsepower, and the tractor can be configured with either a 16 forward by 16 reverse synchromesh transmission or a 4 range hydrostatic transmission. Standout features include a differential lock system for extra traction in slippery conditions, a tight turning angle for maneuvering in narrow areas, a tilt steering wheel, and a water separating fuel filter that protects the engine from contamination. A PTO on and off switch keeps attachment operation safe and simple, and the tractor accepts agricultural, turf, or industrial tires depending on the job.
Specifications
| Manufacturer | TYM |
| Model | 5520 |
| Year | 2026 |
| Condition | New |
| Stock Number | TRK-1059 |
| Engine Manufacturer | TYM T2300T3 |
| Engine Type | Turbocharged, 4 cylinder |
| Gross Engine Power | 55 hp (41 kW) |
| PTO Power | 44 hp (32.8 kW) |
| No. of Cylinders | 4 |
| Displacement | 139.5 cu in (2,286 cc) |
| Transmission Type | Synchromesh, 16F x 16R (optional HST, 4 range) |
| Max Travel Speed | 16 mph synchromesh / 19.5 mph HST |
| PTO Type | Independent |
| Hydraulic Pump Type | Dual gear pump |
| Hitch Lift Capacity | 3,306 lb (1,500 kg) |
| Fuel Tank Capacity | 11.8 gal (45 L) |
| Overall Length | 127.4 in (3,236 mm) |
| Overall Width | 64.9 in (1,650 mm) |
| Wheelbase | 71.1 in (1,806 mm) |
| Operating Weight | 3,836 lb (1,740 kg) with ROPS |
| Front Tires (Standard) | R1 Ag 9.5-16 / R3 Turf 27x8.5-15 or 29x12.5-15 / R4 Industrial 12-16.5 |
| Rear Tires (Standard) | R1 Ag 13.6-26 / R3 Turf 41x14-20 or 44x18-20 / R4 Industrial 17.5Lx24 |
