Description

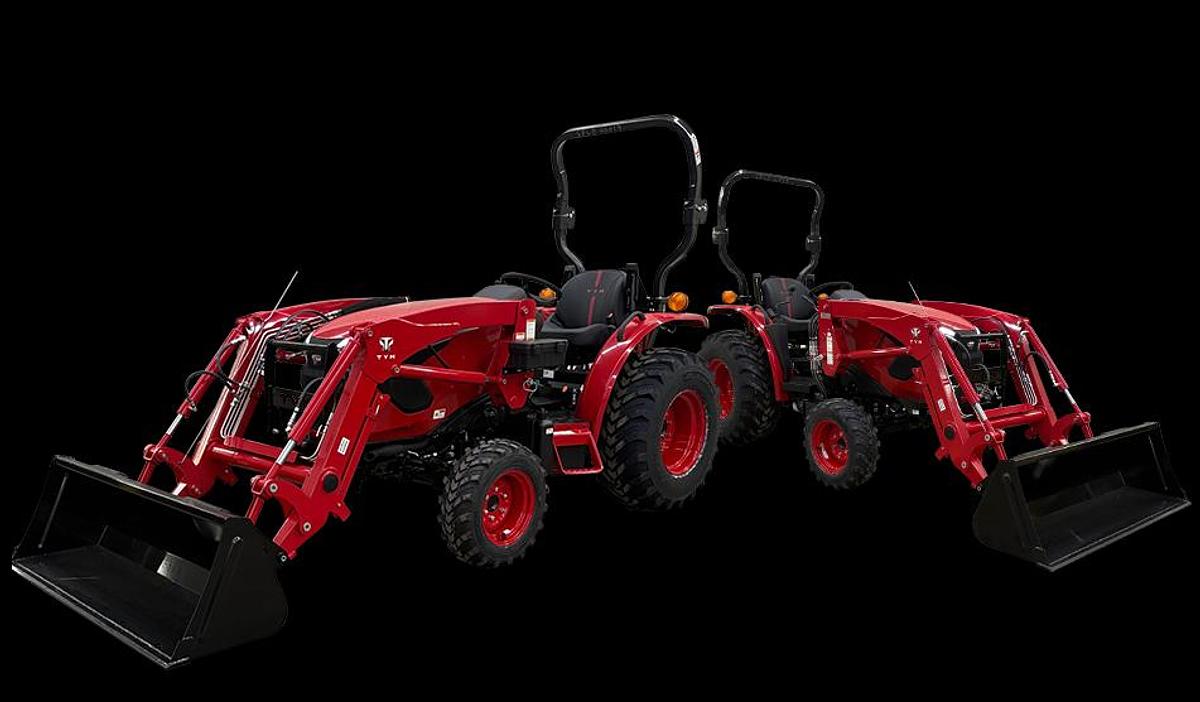

The TYM T3035 takes the same Series 3 platform as the T3025 and steps the power up to 35 horsepower, giving buyers more muscle for loader work, mowing, and general chores while keeping the same 2,200 lb bucket lift capacity and 3,307 lb hitch lift capacity. The naturally aspirated 3 cylinder TYM diesel meets Tier 4 Final emissions standards and delivers 30 PTO horsepower. Standard equipment includes a factory installed loader joystick with an optional 3rd function kit for grapple work, cruise control that maintains engine RPM regardless of load, a simple PTO switch for smooth engagement, and a comfortable suspension seat. Buyers can choose between a 12 forward by 12 reverse synchromesh transmission or a 3 range hydrostatic transmission.
Specifications
| Manufacturer | TYM |
| Model | T3035 |
| Year | 2026 |
| Condition | New |
| Stock Number | TRK-1057 |
| Engine Manufacturer | TYM T1700N6 |
| Engine Type | Natural aspiration, 3 cylinder |
| Gross Engine Power | 35 hp (26.2 kW) |
| PTO Power | 30 hp (22.4 kW) |
| No. of Cylinders | 3 |
| Displacement | 104.5 cu in (1,744 cc) |
| Transmission Type | Synchromesh, 12F x 12R (optional HST, 3 range) |
| Max Travel Speed | 14.4 mph synchromesh / 18.8 mph HST |
| PTO Type | Independent |
| Hydraulic Pump Type | Dual gear pump |
| Hitch Lift Capacity | 3,307 lb (1,500 kg) |
| Fuel Tank Capacity | 8.7 gal (33 L) |
| Overall Length | 120.9 in (3,071 mm) |
| Overall Width | 56.3 in (1,430 mm) |
| Wheelbase | 65.7 in (1,670 mm) |
| Operating Weight | 2,969.6 lb (1,347 kg) with ROPS |
| Front Tires (Standard) | R1 Ag 8-16 / R3 Turf 27x8.5-15 / R4 Industrial 10-16.5 |
| Rear Tires (Standard) | R1 Ag 12.4-24 / R3 Turf 41x14.00 / R4 Industrial 420/70-24 |
