Description

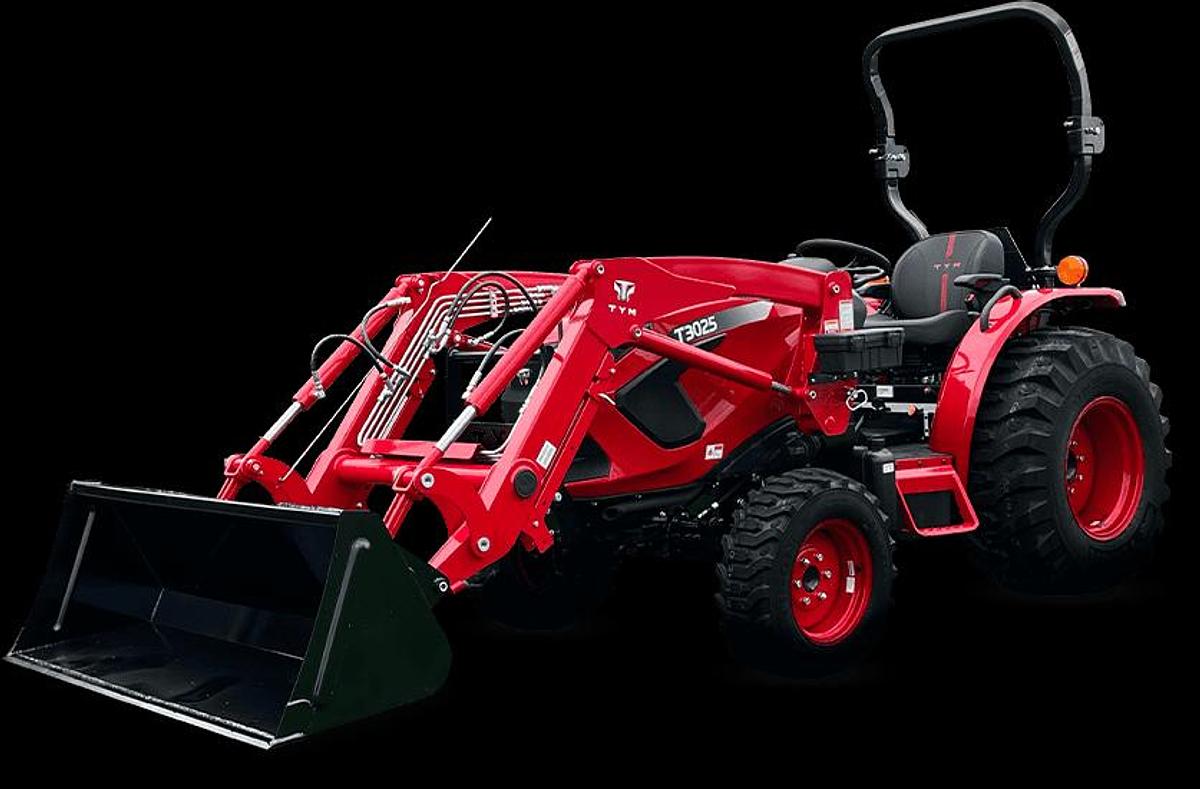

The TYM T3025 is a Series 3 compact tractor built around a 24 horsepower TYM diesel engine that stays quiet and smooth while meeting Tier 4 emissions standards. It is backed by a 6 year powertrain warranty and offers 3,307 lb of hitch lift capacity along with 2,200 lb of bucket lift capacity, which is a strong showing for a tractor this size. Standard features include a factory installed loader joystick, cruise control that holds engine RPM under changing load, an independent PTO with a simple engage and disengage switch, and a comfortable suspension seat. The tractor is available with either a synchromesh transmission or a hydrostatic transmission, giving buyers a choice between a 12 forward by 12 reverse gearbox and a smooth pedal operated HST with a 3 range gearset.
Specifications
| Manufacturer | TYM |
| Model | T3025 |
| Year | 2026 |
| Condition | New |
| Stock Number | TRK-1056 |
| Engine Manufacturer | TYM T1700N6 |
| Engine Type | Natural aspiration, 3 cylinder |
| Gross Engine Power | 24 hp (18 kW) |
| PTO Power | 21 hp (15.7 kW) |
| No. of Cylinders | 3 |
| Displacement | 104.5 cu in (1,714 cc) |
| Transmission Type | Synchromesh, 12F x 12R (optional HST, 3 range) |
| Max Travel Speed | 11.7 mph synchromesh / 16.7 mph HST |
| PTO Type | Independent |
| Hydraulic Pump Type | Dual gear pump |
| Hitch Lift Capacity | 3,307 lb (1,500 kg) |
| Fuel Tank Capacity | 8.7 gal (33 L) |
| Overall Length | 121 in (3,071 mm) |
| Overall Width | 56.3 in (1,430 mm) |
| Wheelbase | 65.7 in (1,670 mm) |
| Operating Weight | 2,969.6 lb (1,347 kg) with ROPS |
| Front Tires (Standard) | R1 Ag 8-16 / R3 Turf 27x8.5-15 / R4 Industrial 10-16.5 |
| Rear Tires (Standard) | R1 Ag 12.4-24 / R3 Turf 41x14.00 / R4 Industrial 420/70-24 |
